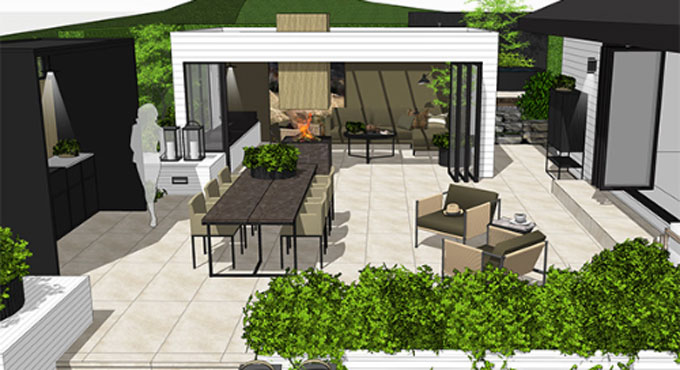

Designing Outdoor Living Spaces with SketchUp: Tips and Techniques
Creating outdoor living spaces that are both functional and aesthetically pleasing can be a challenging task. However, with SketchUp, a powerful 3D modeling software, you can design and visualize patios, decks, gardens, and other outdoor spaces with ease.
Getting Started with SketchUp
Downloading and Setting Up
First, you'll need to download and install SketchUp. There are both free and paid versions available, depending on your needs. Once installed, spend some time getting familiar with the interface and basic tools. SketchUp's user-friendly design makes it relatively easy for beginners to get started quickly.
Learning the Basics
Before diving into your outdoor living space project, it s important to understand some of the basic functions of SketchUp:
1. Drawing Tools: These include the line, rectangle, circle, and arc tools, which allow you to create basic shapes.
2. Push/Pull Tool: This tool extrudes 2D shapes into 3D forms.
3. Move, Rotate, and Scale Tools: These tools help you manipulate objects within your model.
4. Groups and Components: Organize your model by grouping objects or creating components that can be reused.
Planning Your Outdoor Living Space
Site Analysis
Before you start designing, conduct a thorough analysis of your site. Consider factors such as the size and shape of the area, the existing landscape, and the climate. Take note of any existing structures or features that need to be incorporated into your design.
Concept Development
Develop a concept for your outdoor living space. Think about how you want to use the space. Do you need areas for dining, lounging, gardening, or cooking? Consider the flow and how different areas will connect. Sketch out your ideas on paper before translating them into SketchUp.
Designing with SketchUp
Creating the Base Model
1. Import Site Plan: If you have a site plan or survey, import it into SketchUp. This can serve as a base for your design.
2. Draw the Perimeter: Use the drawing tools to outline the perimeter of your outdoor space. This could include property lines, existing structures, and significant landscape features.
3. Define Levels and Slopes: Use the push/pull tool and sandbox tools to create different levels and slopes, reflecting the actual terrain of your site.
Designing Hardscape Elements
Patios and Decks
1. Sketch the Outline: Use the rectangle or polygon tool to draw the shape of your patio or deck.
2. Extrude to 3D: Use the push/pull tool to extrude the shape to the desired height.
3. Apply Materials: Use the paint bucket tool to apply textures like wood, stone, or concrete to your surfaces.
Paths and Walkways
1. Draw the Path: Use the line or arc tool to sketch the path's route.
2. Create the Surface: Use the offset tool to define the path's width, then extrude it with the push/pull tool.
3. Add Edging: Draw and extrude edges or curbs to enhance the realism of your walkways.
Designing Softscape Elements
Gardens and Plantings
1. Define Planting Areas: Use the freehand or rectangle tool to outline garden beds and planting areas.
2. Use Components for Plants: Download plant components from the 3D Warehouse or create your own. Place them in the designated areas, scaling and rotating as needed for a natural look.
3. Add Ground Cover: Use textures or low-poly models to represent grass, mulch, or gravel.
Trees and Shrubs
1. Choose Appropriate Models: Select tree and shrub components that match your design's scale and style.
2. Place and Position: Place trees and shrubs strategically to provide shade, privacy, or visual interest. Adjust their size and orientation to fit the space.
Enhancing Your Design
Adding Furniture and Accessories
1. Select Outdoor Furniture: Download or create models of furniture items such as chairs, tables, and lounges. Arrange them in your space to see how they fit and look.
2. Include Accessories: Add elements like planters, umbrellas, fire pits, and lighting to enhance the ambiance and functionality of the space.
Incorporating Water Features
1. Design Ponds and Pools: Use the drawing tools to outline the shape of ponds or pools. Extrude to create depth and apply water textures.
2. Add Fountains and Waterfalls: Use components or create your own models to add dynamic water features.
Lighting and Shadows
1. Add Light Fixtures: Place models of outdoor light fixtures throughout your design. Consider both functional and decorative lighting.
2. Simulate Sunlight: Use SketchUp's shadow settings to simulate how natural light will affect your space at different times of day and year.
Visualization and Presentation
Creating Scenes and Views
1. Set Up Scenes: Create scenes to capture different views and aspects of your design. This can include overall views, close-ups of specific features, and before-and-after comparisons.
2. Animate Walkthroughs: Use SketchUp's animation features to create walkthroughs of your design, giving a realistic feel of moving through the space.
Exporting and Sharing
1. Export Images and Videos: Export high-quality images and animations of your design to share with clients, friends, or on social media.
2. Create Construction Documents: Use LayOut, SketchUp's companion program, to create detailed construction documents from your model.
Advanced Techniques
Using Extensions
SketchUp has a wide range of extensions that can enhance your design capabilities. Some useful extensions for outdoor living space design include:
1. Landscape Design Tools: Extensions like Skatter can help you quickly populate your model with plants and other landscape elements.
2. Rendering Plugins: Tools like V-Ray or Enscape can produce photorealistic renderings of your design.
3. Terrain Modeling: Plugins like Artisan or TopoShaper can assist with creating more complex terrain and topography.
To learn more, watch the following video tutorial.
Video Source: Aaron Kennedy
Collaboration and Feedback
1. Share Your Model: Upload your model to the 3D Warehouse or use SketchUp Viewer to share it with others.
2. Gather Feedback: Get input from clients, friends, or colleagues to refine and improve your design.
Conclusion
Designing outdoor living spaces with SketchUp is a rewarding process that allows you to visualize and refine your ideas in a 3D environment. By following these tips and techniques, you can create beautiful, functional outdoor spaces that enhance the enjoyment and value of any property. Whether you are designing a cozy patio, a sprawling garden, or an inviting deck, SketchUp provides the tools you need to bring your vision to life.
