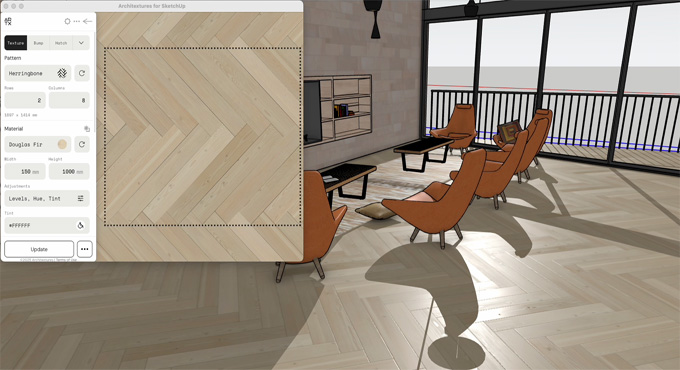

Architextures extension for SketchUp 2025

The Architextures extension for the SketchUp software helps to offer a huge collection of high-quality seamless textures for the use of 3D design models and architectural drawings. Design textures, hatches and bump maps can be created and edited with the help of the Architextures extension within the SketchUp software.

The Architextures extension is compatible with Windows and Mac, and the supporting language for this SketchUp extension is English. With the help of the Architextures extension of the SketchUp software, the design materials can be imported instantly, and the users are able to test the material options instantly for their design models. Thus, the user can avoid the download requirements and can import and scale the design materials manually.

The imported design textures can be edited later by right-clicking on the face along with that material assigned and selecting “Edit with Architextures” from the context menu. The key design feature of the Architextures extension for the SketchUp software includes the procedural generation of the design materials.

The Architextures extension also helps to get the real-time updates to the SketchUp design model. In addition, the Architextures extension also allows users to edit the eisgn attributes like rows, colours, design patterns and others. The pro version of the Architextures extension for the SketchUp software also has advanced design features like 3D maps, which help to get more realistic renderings and are supported by the latest versions of the SketchUp software.

Design features of the Architextures extension for the SketchUp software

Importing feature

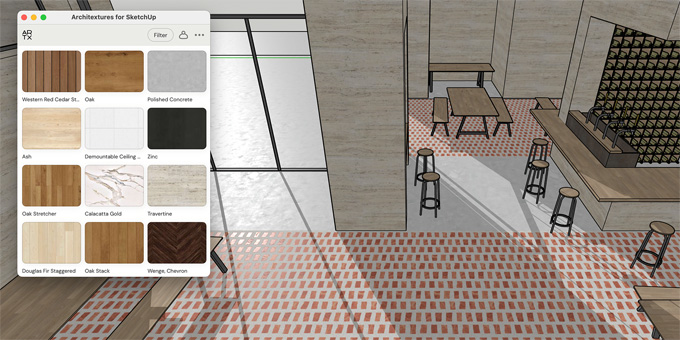

The user can import the design textures with the help of the Architextures extension. In this context, the users have to click on the Architextures icon or they have to select Extensions and then has to click on the Architextures for SketchUp option from the menu bar to launch this SketchUp extension. While launching the extension, the library of textures has been displayed along with the filters.

The user can click on any textures from the library, open a preview and access the import option. The user has to click on the Import button to add the design material to their material palette. After importing the design material, the paint bucket tool has been launched automatically along with the new material selected.

Creation of the custom texture

With the help of the Architextures extension, users are able to adjust any design texture in the library to suit their design. For editing the library texture, the user can simply click on it, and they can select edit from the preview window. The users are able to adjust the settings and import the textures as per the design requirements with the help of the Architextures extension.

Editing features

The Architextures extension also enables the user to edit the existing Architextures material, and in this context, the user has to right-click on any face where that design material has been applied. The user has to select Edit with Architextures from the context menu to do further adjustments. After adjusting the design texture, the user has to click on the update option to overwrite the existing material.

How to download the Architextures extension for the SketchUp software

For downloading the Architextures plugin, the user has to follow several steps, which are:

1. At first, the user has to open the SketchUp software.

2. Then, the user has to go to the Windows option from the menu bar and has to go to the Extension Warehouse.

3. In the next step, the user has to go to the search bar, and they have to type "Architextures for SketchUp" and press the Enter button.

4. In the next step, the user has to click on the "Architextures for SketchUp" extension in the search results.

5. After that, the extension page appeared, on which the user has to select the install extension button.

For installing the Architextures extension for the SketchUp software, the users also need to follow several steps, which are:

1. The user has to go to the Architextures for SketchUp page on the SketchUp Extension Warehouse and then has to download the .rbz file.

2. In the next step, the user has to open the SketchUp software.

3. In the SketchUp software, the user has to go to the menu bar and click on Windows and then go to the Extension Manager option.

To learn more, watch the following video tutorial.

Video Source: Garden Design Tools for Professionals

Download Architextures

4. In the next step, the user has to click on the Install extension option.

5. After that, the user has to navigate to their download folder and select the Architextures .rbz file that they have downloaded and then, the user has to click the “Open” option.
