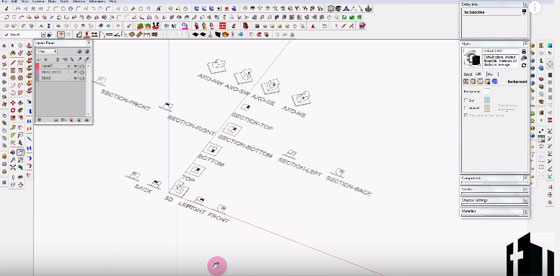

This exclusive sketchup video tutorial will show you how to use the Sketchup Plugin CADup. TIG has developed CADup for Sketchup to generate 2d line drawings of all standard views concerning a Group or Component-Instance which can be applied with a CAD program. The new collection can be exported to a individual SKP [right-click ‘Save-AS…’] and consequently as a DWG or DXF to be utilized in a CAD program.
It is recommended to use CADup in an clean SKP in order that the intersections of entities can be used for making complex geometry calculations and these are not affected by other irrelevant entities [even if they might be ‘hidden’].
